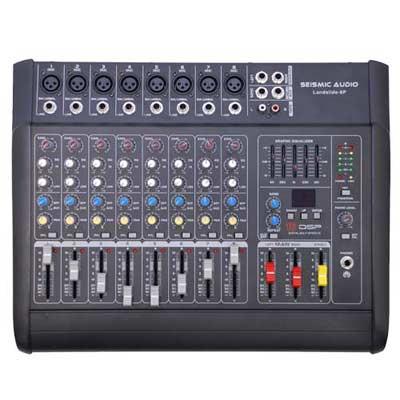

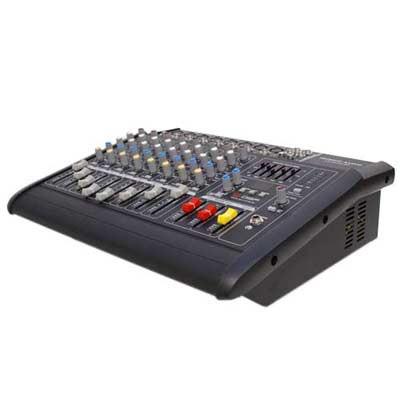

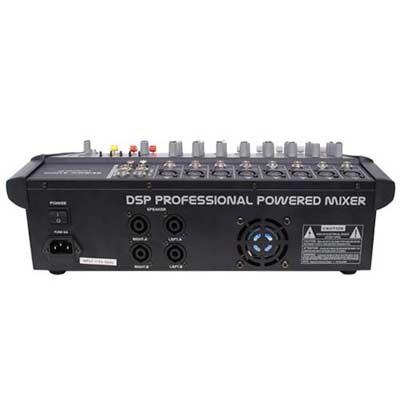

- Model: LandSlide-8P
- 8 Channel DSP Professional Powered Mixer
- 8 discrete input channels with gold plated XLR and balanced 1/4"
- 200 Watts RMS at 8 ohm
- 400 Watts RMS at 4 ohm
- 600 Watts RMS at 2 ohm
- Overload Protection
- Ultra low noise discrete mic pre-amp with +48 V phantom power
- Balanced inputs for highest signal integrity
- Ultra musical 2-band EQ on all channels
- Peak LED on each input channel
- Aux bus for external effect and monitoring
- Simulate effect (16 DSP)
- RCA input / output
- Highly accurate 5 segment bargraph meters
- Separate master mix outputs
- 5 Band Graphic EQ
- 2 SpeakOn per channel output (4 total SpeakOn)
Specifications
Mono Inputs
- Mic Input B: Electronically balanced discrete input configurations
- Bandwidth: 10 Hz to 60 kHz +/- 3 db
- Distortion (THD&N): 0.01% at +4 dbu, 1kHz, Bandwidth 80 kHz
- Mic E.I.N. (22 Hz - 22 kHz):
- -129.5 dBu, 150 ohm source
- -117.3 dBqp, 150 ohm source
- -132.0 dBu, input shorted
- -122.0 dBqp, input shorted
- TRIM range: +10 dBu to 60 db
- Line Input: Electronically balanced
- Line Level Range: +10dBu to 4 dBu
Equalization
- Hi: 12 kHz +/- 15 dB
- Low: 80 Hz +/- 15 dB
Master Mix Section
- Max Output: +22 dBu balanced
- Aux Send Max Out: +22 dBu unbalanced
- Control Room Out: +22 dBu unbalanced
- Signal to noise ratio: +112 dB all channels at unity gain
