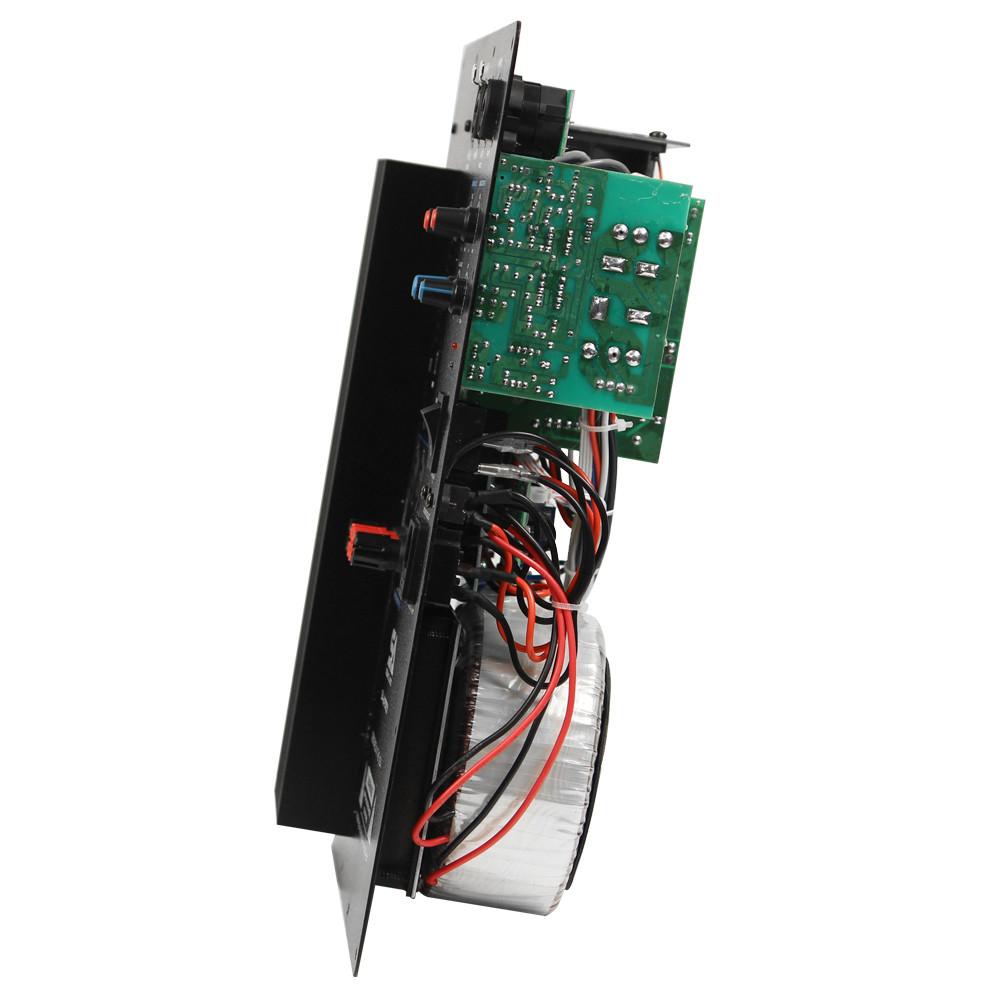

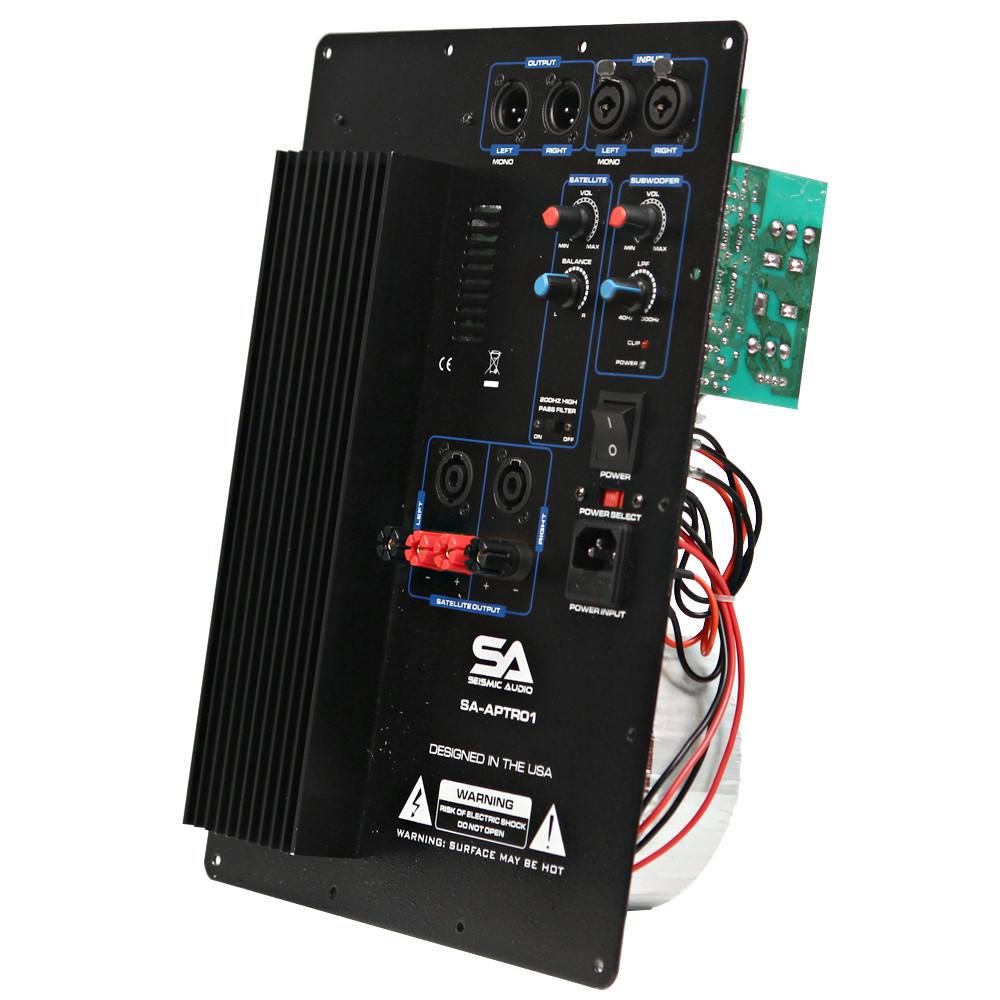

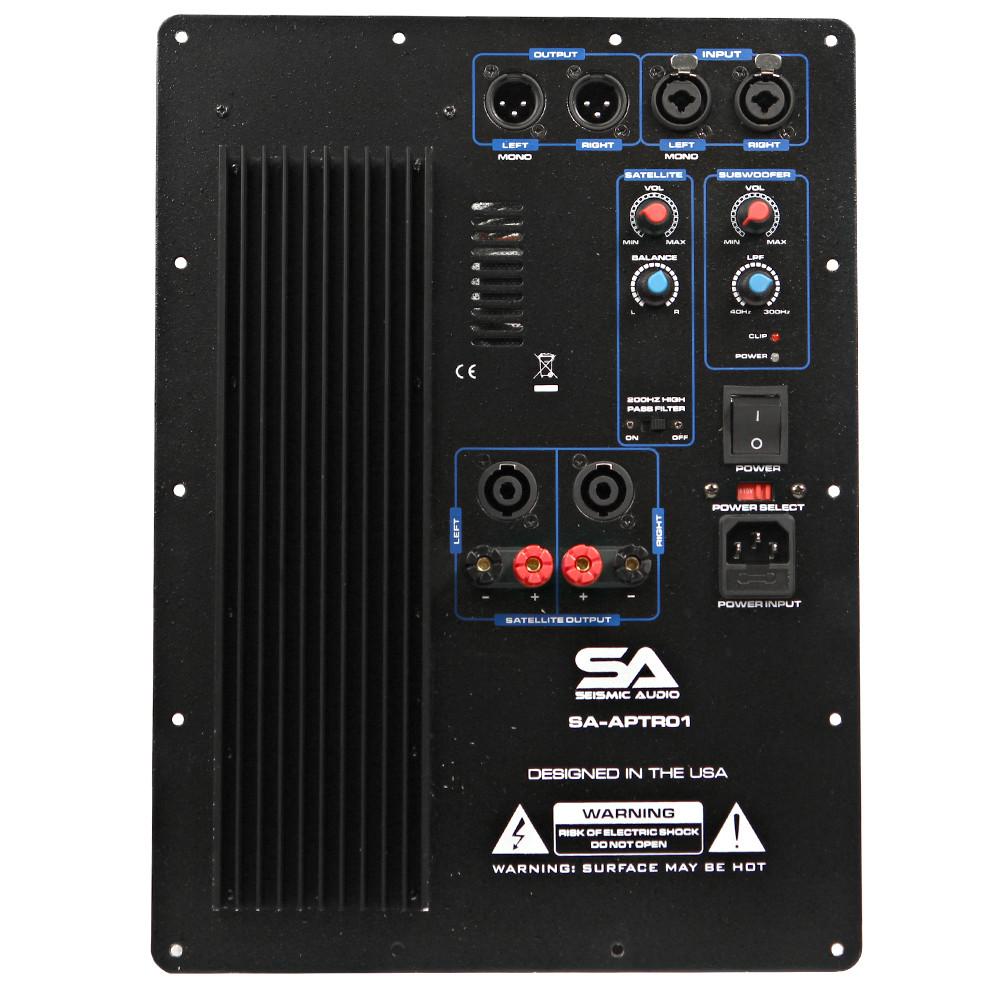

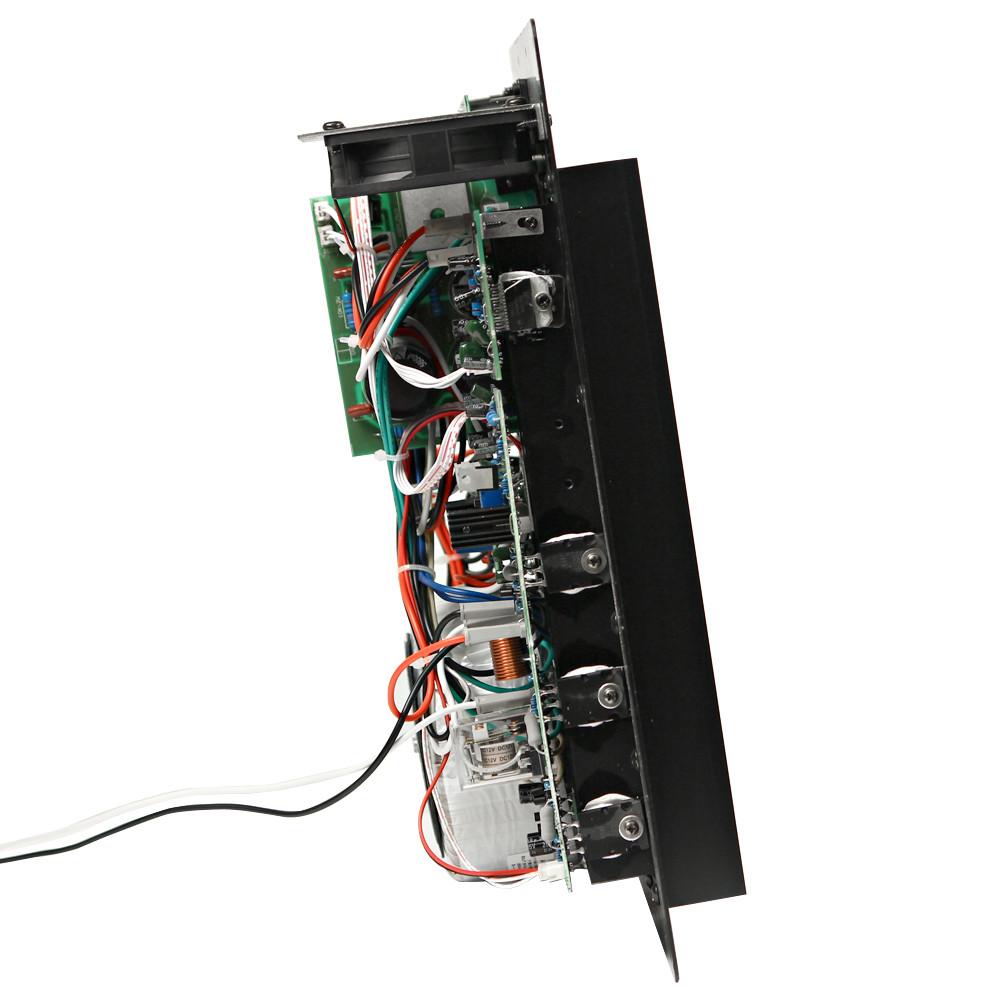

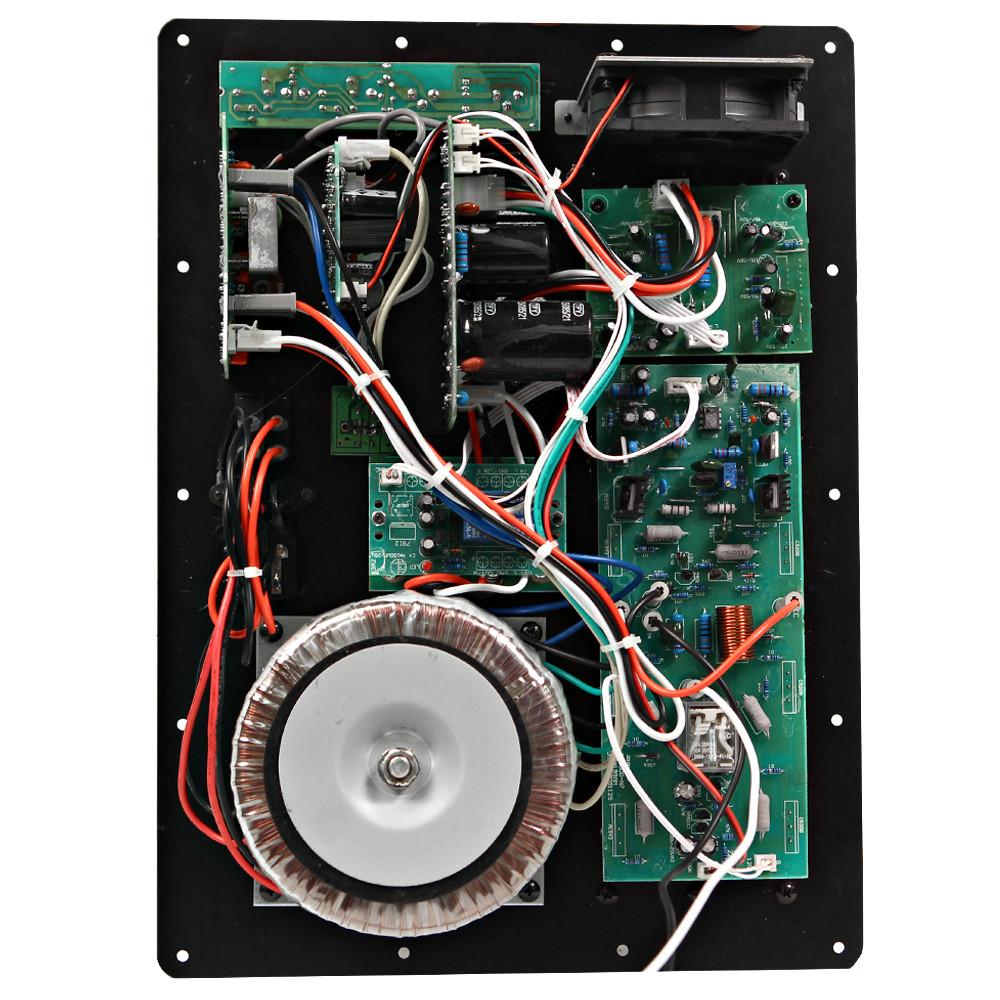

Load image into Gallery viewer, SA-APTR01 - 2 Channel Plate Amplifier for PA/DJ Subwoofer Cabinets with 2 Satellite Outputs

SA-APTR01 - 2 Channel Plate Amplifier for PA/DJ Subwoofer Cabinets with 2 Satellite Outputs

Regular price: £224.99
Sale price: £224.99
Regular price: ~~£349.99~~
Unit price: per

Tax included.

Quantity must be 1 or more

2 Channel Plate Amplifier for PA/DJ Subwoofer Cabinets

Model: SA-APTR01
Contents: 2 Channel Subwoofer Plate Amplifier
Condition: New
Amplifier Type: Class AB
Power Rating: 300 Watts RMS; 600 Watts Peak at 8 Ohms
Line Input: 1/4 and XLR Combo Jack
Line Output: XLR Male
Controls: Subwoofer: Low Pass Filter and Master Volume Controls
Satellite Control: Volume, Balance
Switch for 200Hz High Pass Filter
Protection: DC Fan to Prevent Overheating, Overload Protection, Over Current Protection, Short Circuit Protection
Two Channel Satellite Power Output: 8 Ohm - 2 x 100 Watts - 4 Ohm - 2 x 150 Watts
Speakon and Binding Post can be used for the Power Output
Voltage Changeover Switch: 115V/230V
Dimensions: 14.9" x 11" x 4.75"
Weight: 20.2 lbs
Warranty: One Year Warranty

Seismic Audio's line of Plate Amplifiers gives you the ability to build your own powered speaker cabinets and powered subwoofer cabinets. The SA-APTR01 is a Class AB amplifier designed for Subwoofer enclosures. It has a power rating of 300 Watts RMS and 600 Watts Peak. This plate amplifier offers 2 Speakon and Binding Post Power outputs to power 2 Satellite speakers. This amp also has Low Pass Filter and Master Volume controls as well as circuit and overload protection. When paired with the right subwoofer driver and speaker, these plate amplifiers produce the loud, clear, and clean sound to reinforce your PA loudspeaker system. With your purchase, you will receive one 2 Channel Plate Amplifier pictured and described above.
